Kumar Metal Industries has pioneered in high quality refinery equipment / machinery for efficient neutralizing, deodorization, bleaching, and other processes. We have manufactured all our Oil Mil equipment by using the latest machinery and technology. To ensure their highest quality standard, we conduct continous inspections and tests on all our refinery machinery. Apart from being highly efficient and sturdy, these are available at economical prices.
 |
Neutralizing & Water Washing |
 |
|
|

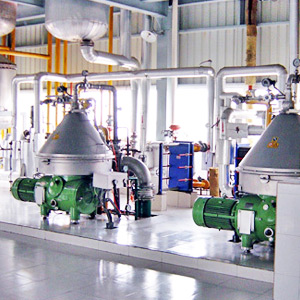

The system is designed to Neutralize and water washing the crude oils. The Neutralizing System is used as the first step in chemical refining referred to as Neutralizing.
Neutralizing : The oil is delivered to the system by the Feed Pump. It is heated to 65 - 70 C in the Crude Oil Economizer by hot oil from down-stream bleaching/deodorizing operations or, when necessary, by steam in the Feed Heater mixed with pre calculated quantity of Phosphoric acid in an gum conditioning mixer and fed to mixer where the pre calculated quantity of water is added . Oil water mixture is fed to hydration tank to give sufficient residence time for gums to agglomerate on hydration. This oil is then pump to separator where the oil and hydrated gums are separated and pumped to storage or disposal or gum drying plant in case of soybean gums.
Water Washing: The residual soap in the degummed & neutralized oil is reduced by water washing. In this case the oil from the separator is heated to about 95 C in the Washing Heater and then mixed with 10 - 15% soft water in the Wash Mixer. After a few minutes retention in the Wash Reactor the wet oil enters the Wash Water Separator. The washed oil, typically containing under 100 ppm soap and with a reduced level of phosphorus, is sent directly to bleaching as described above. The heavy phase soapy water is collected in the Recovered oil tank and drained to Effluent treatment.
Vacuum drying: Washed oil is fed continuously to the Vacuum dryer and sprayed through specially designed nozzles. The vacuum dryer is kept under a vacuum of 70 torr. The dried oil from the vacuum chamber is continuously pumped out by pump to intermediate storage tank.
|
|
|
|
|
|
| |
|
|
|
|
|
|
| |
| |
|
