We have developed a technology driven infrastructure with all modern facilities to manufacture a wide range of products. Our strength is our well managed quality department that is well equipped with all modern devices to test our products and produce an impeccable range of oil mill machinery. Owing to our well developed infrastructure and total quality control management (TQM), we are able to manufacture a range of products that adhere to all quality control norms. Our economical price range, vast range of machines coupled with customization facility helps us to gain a success in the industry.
 |

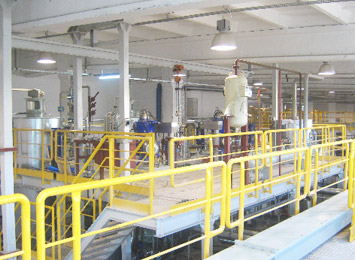

Degumming System |
 |
|
|
The system is designed to degum crude oil. The Degumming System will generally produce oil with lower levels of residual phosphatides and less residual pigments and therefore require less bleaching earth in bleaching as well as help generate finished deodorized oil with a lighter color and longer shelf life. The process design is illustrated on the attached drawing.
The oil is delivered to the system by the Feed Pump. It is heated to 65 - 70 C in the Crude Oil Heater by steam in the Feed Heater and then mixed with acid solution in the Mixer. The mixture is delivered to reaction vessel with agitator for completion of reaction. The mixture from reaction vessel is cool down to 25-30 Deg C and mixed with desired quantity of water. This mixture is delivered to hydration vessel with agitator for coagulation of phospotides. The coagulate mass is transferred to centrifugal separator through heater to heat the oil 70-80 Deg C. for separation of gums from oil. Separated gums are collected in gum tank and delivered to storage or to desolventizer toaster. Degummed oil from separator is transferred via heat exchanger to vacuum drier for removal of moisture from oil. Dried oil from drier is delivered to dried oil storage tank.
|
|
|
|
|
|
| |
|
|
|
|
|
|
| |
| |
|
